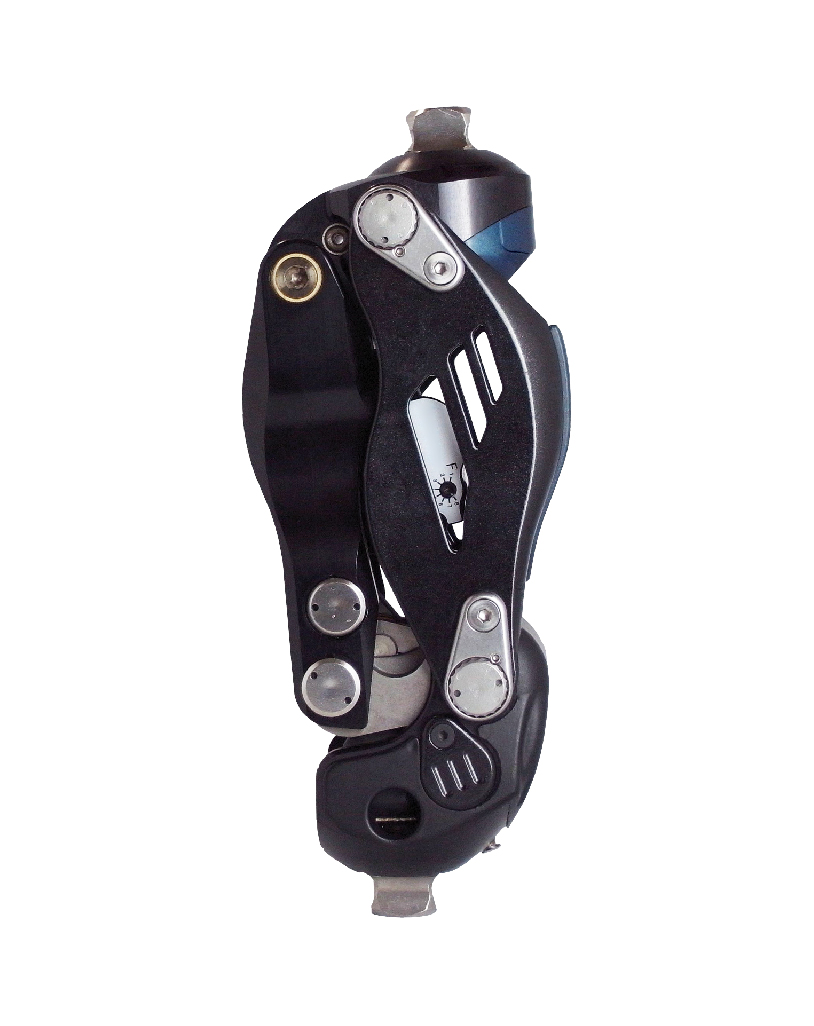

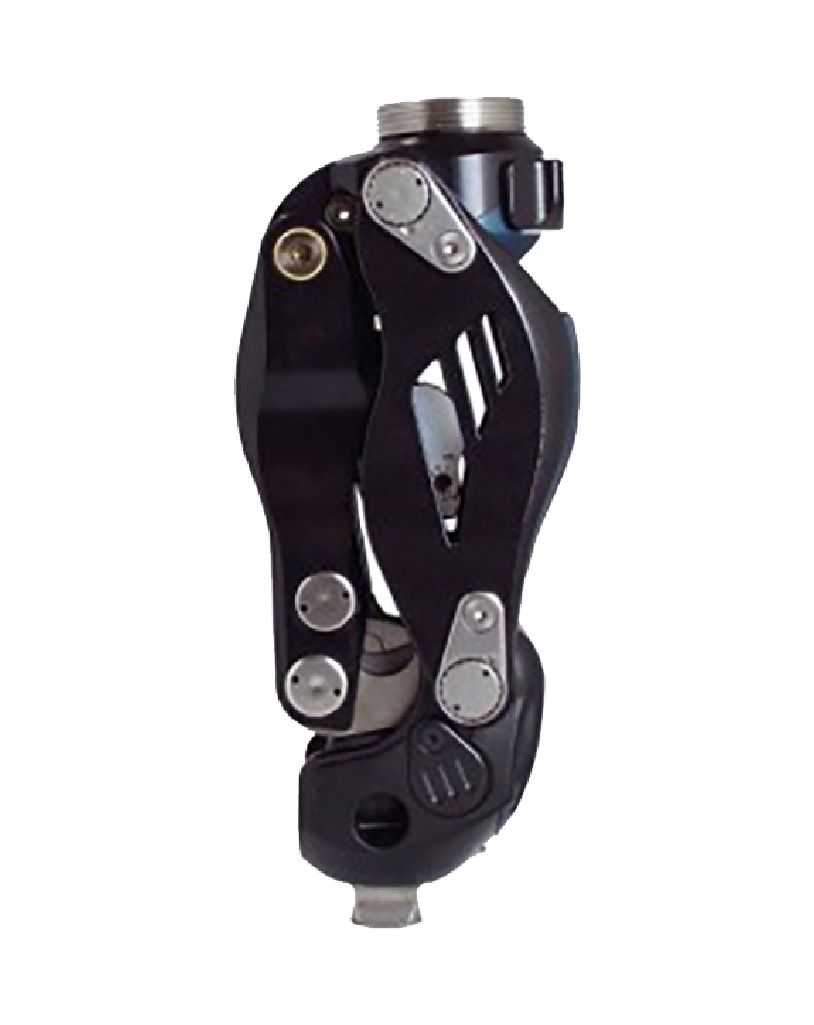

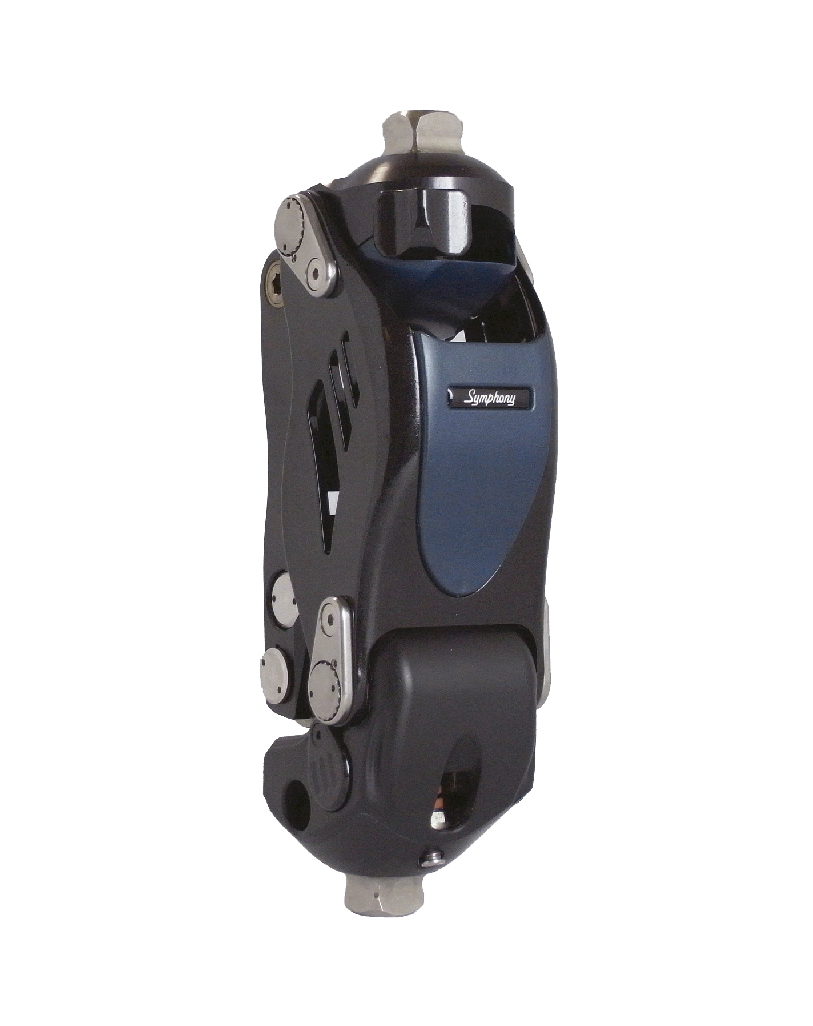

The range of 1P321 knees has been developed to provide real stability during stance phase.
Its original design with 6 polycentric axes provides the patient with great safety and a very flexible swing phase thanks to its new hydraulic system.
The original mechanical sensing p-MRS system automatically recognizes the phases of the walking cycle and adjusts stability accordingly.
Stance Flex function : The knee ensures pre-flexion from heel strike to flat foot. This feature allows for shock absorption at heel strike and reduces the displacements of the centre of gravity.
The optional lock improves safety under very hard conditions of use.
Product Nr | TH | BH | H | Flexion | Proximal connection | Distal connection | Weight | Material |
---|---|---|---|---|---|---|---|---|
1P321 | 197 mm | 156 mm | 14 mm | 160° | Pyramid | Pyramid | 940 g | Aluminium + Titanium |
1P321-KD | 191 mm | 156 mm | 14,5 mm | 160° | M36 screw | Pyramid | 980 g | Aluminium + Titanium |
