Locking Knees / Proteor USA
The knees of the 1M01/1M10 range allow the patient to walk in complete safety with the knee being locked.

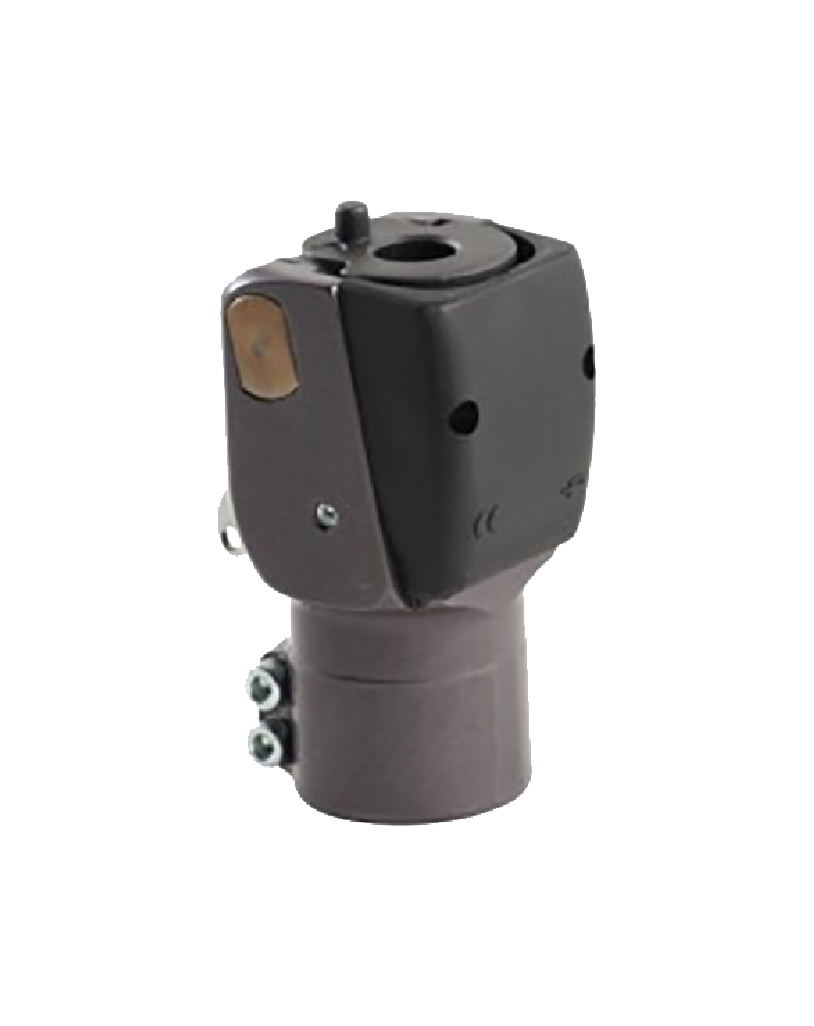

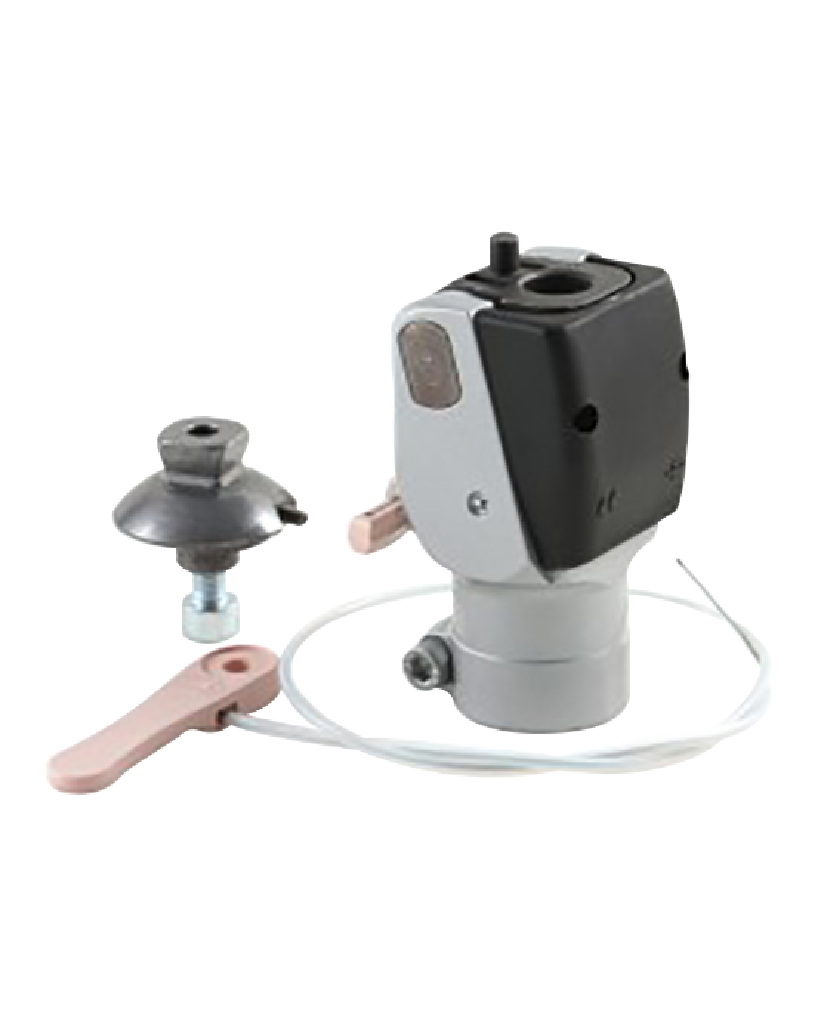

1M01 : locking knee with cable for patients up to 100 kg.

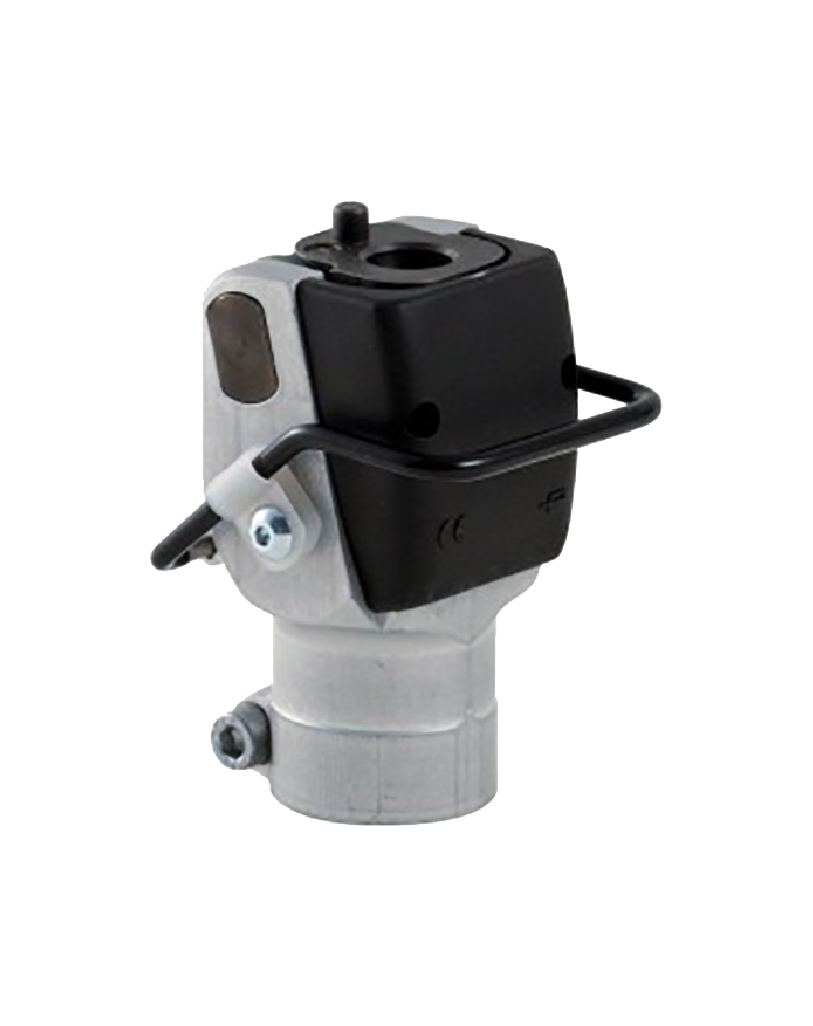

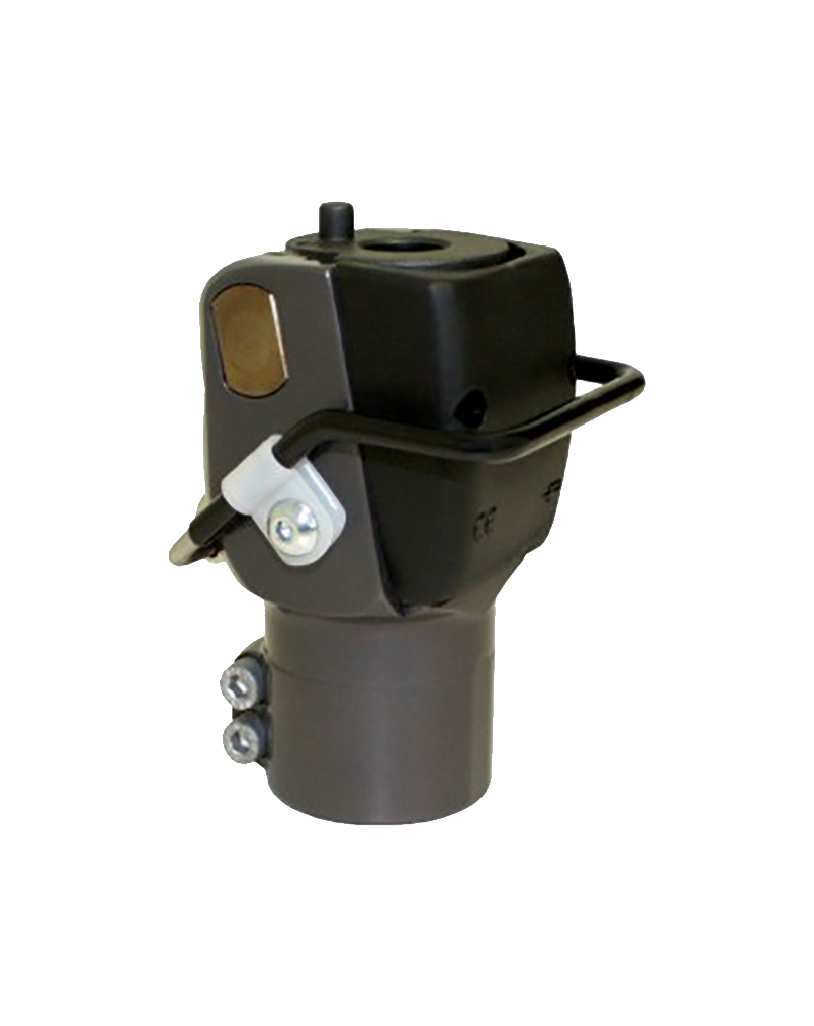

1M10 : locking knee with handle for patients up to 100 kg.
1M01-P6 : locking knee with cable for patients up to 125 kg.
1M10-P6 : locking knee with handle for patients up to 125 kg.
1M01 is reversible as the release cable can be attached either on the right or the left side.
Product qualities
- Safety and reliability.
- Ease of assembly.
- Compact and light.
100% Original
| Product Nr | TH | BH | H | Flexion | Proximal connection | Distal connection | Activity | Maximum weight of the patient | Weight | Material |
|---|---|---|---|---|---|---|---|---|---|---|
| 1M01 | 99 mm | 58 mm | 13 mm | 130° | 1K160/1K163/1K03/1K30/1K20/1K40 | Tube Ø 30 mm | 1 | 100 kg | 345 g | Alu + Steel |
| 1M10 | 99 mm | 58 mm | 13 mm | 130° | 1K160/1K163/1K03/1K30/1K20/1K40 | Tube Ø 30 mm | 1 | 100 kg | 355 g | Alu + Steel |
| 1M01 - P6 | 102 mm | 59 mm | 14 mm | 130° | 1K160-P6/1K03-P6/1K40 | Tube Ø 34 mm | 1 | 125 Kg | 375 g | Alu + Steel |
| 1M10 - P6 | 102 mm | 59 mm | 14 mm | 130° | 1K160-P6/1K03-P6/1K40 | Tube Ø 34 mm | 1 | 125 Kg | 375 g | Alu + Steel |
