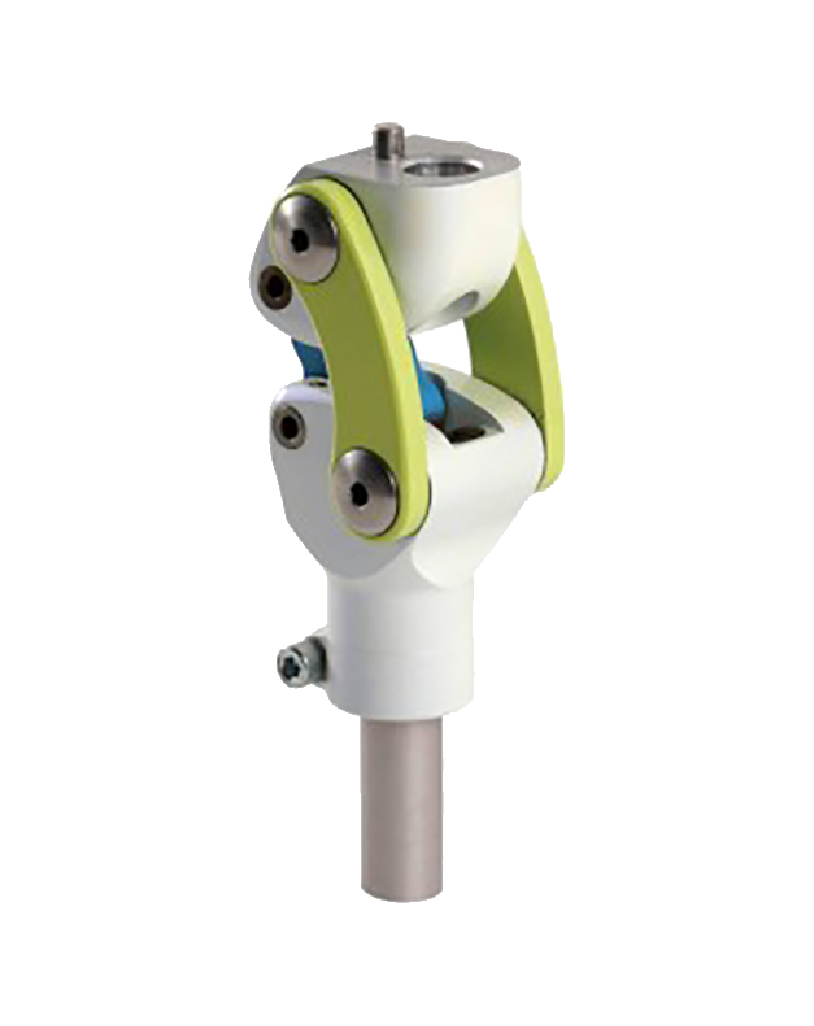

Compact 4-Axis Knee / Proteor USA
1M112 : very lightweight and compact knee designed for children up to 45 kg.
1M113 : very lightweight and compact knee designed for women and youth up to 80 kg.
Product qualities
- Safety in stance phase : alignment and axis geometry.
- Rear linkage in titanium.
- The 4 axes and linkage geometry provides a shortening of the leg segment during swing phase.
100% Original
1M112 / 1M113 - Compact 4-Axis Knee
| Product Nr | TH | BH | H | Flexion | Proximal connection | Distal connection | Activity | Maximum weight of the patient | Weight | Material |
|---|---|---|---|---|---|---|---|---|---|---|
| 1M112 | 155 mm | 75 mm | 11 mm | 165° | 1K164/1K03/1K30/1K20/1K40 | Tube Ø 22 mm | 2 - 3 | 45 kg | 320 g | Alu |
| 1M113 | 155 mm | 75 mm | 11 mm | 165° | 1K160/1K163/1K03/1K30/1K20/1K40 | Tube Ø 30 mm | 2 - 3 | 80 kg | 340 g | Alu |
