4-Axis knee / Proteor USA

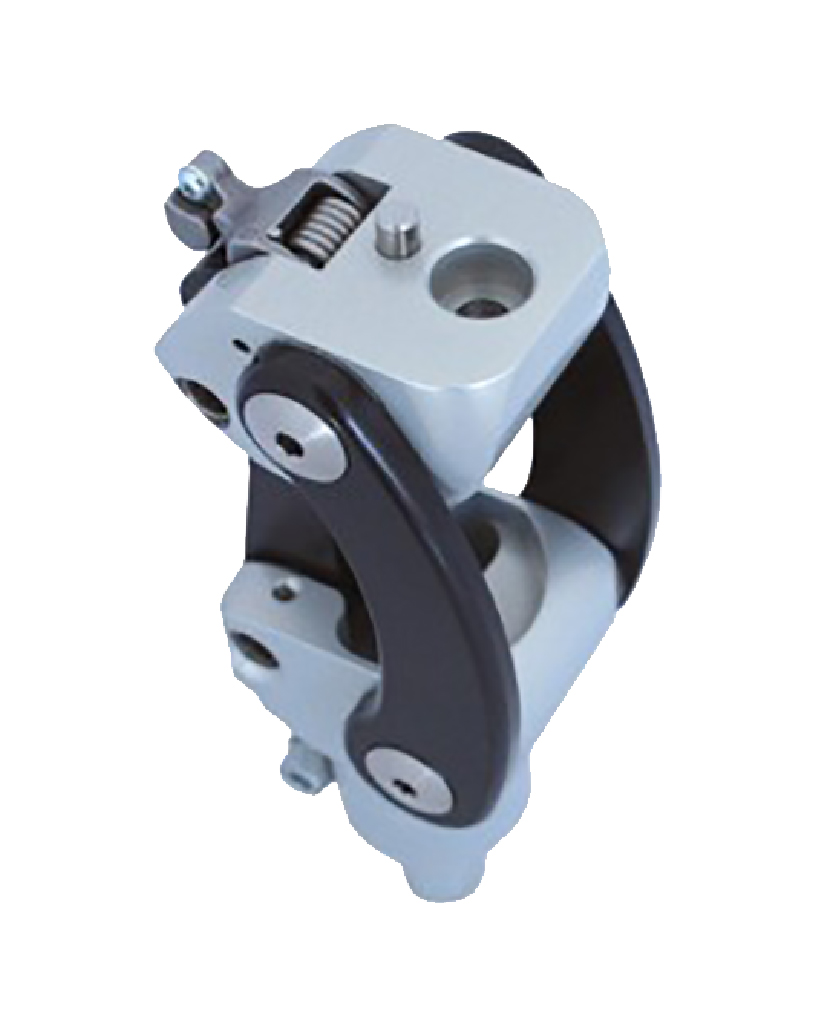

1M02V : its optional lock ensures enhanced safety on difficult or uneven grounds, or during rehabilitation phase. The optional lock is operated by the patient himself.
Product qualities
- Possible fitting of long stumps and knee disarticulations.
- Safety in stance phase : alignment and axis geometry.
- The 4 axis and linkage geometry provides a shortening of the leg segment during swing phase.
100% Original

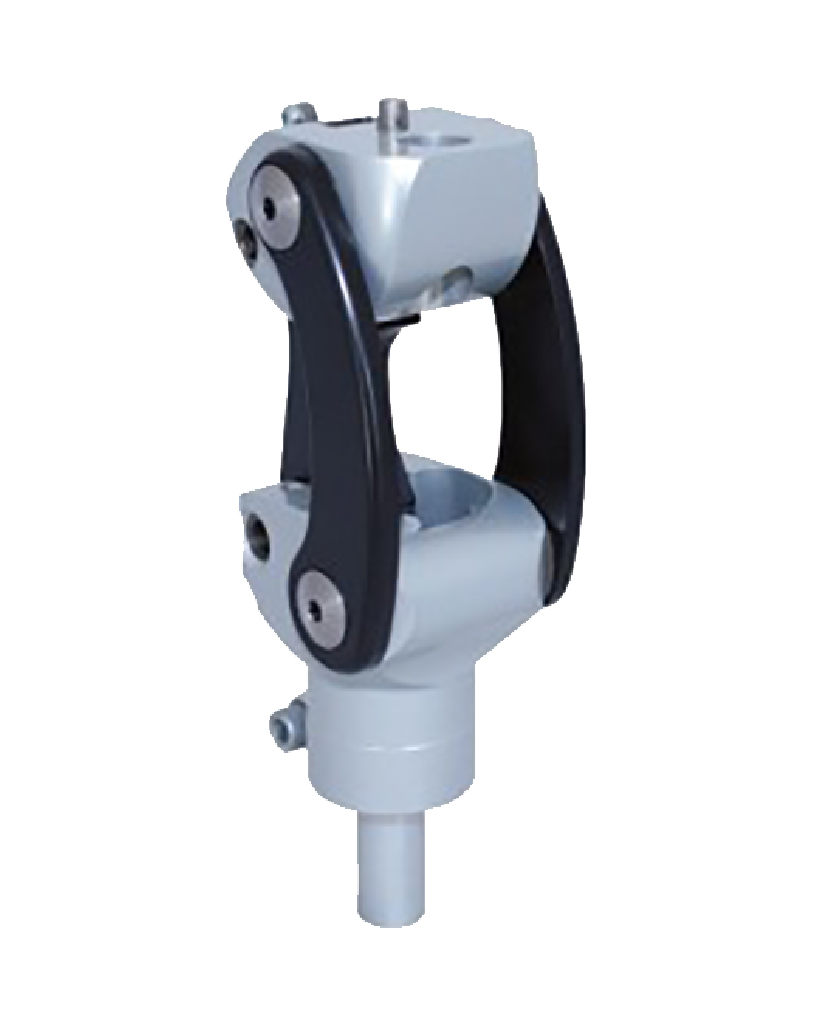

1M102 / 1M102V - 4-Axis Knee with Long Linkages
| Product Nr | TH | BH | H | Flexion | Proximal connection | Distal connection | Activity | Maximum weight of the patient | Weight | Material |
|---|---|---|---|---|---|---|---|---|---|---|
| 1M102 | 184 mm | 108 mm | 12 mm | 160° | 1K160/1K163/1K03/1K30/1K20/1K40 | Tube Ø 30 mm | 1 - 2 | 100 kg | 565 g | Aluminium |
| 1M102V | 184 mm | 108 mm | 12 mm | 160° | 1K160/1K163/1K03/1K30/1K20/1K40 | Tube Ø 30 mm | 1 - 2 | 100 kg | 575 g | Aluminium |
